How to manually package an Electron app for Windows

There are plenty of modules that take care of packaging Electron applications for all supported operating systems, such as electron-packager and electron-builder, however its useful to know what’s going on under the hood.

Download Electron

The way Electron packaging works is that the developer downloads a pre-built version of Electron, and customizes the package to include their custom code and resources. You can find pre-built Electron packages at the official GitHub Releases.

For this post, we’re going to use v1.4.4, so we’ll go ahead and download electron-v1.4.4-win32-x64.zip.

Let’s decompress the ZIP and take a look inside:

$ unzip electron-v1.4.4-win32-x64.zip
$ ls -1
LICENSE
LICENSES.chromium.html
blink_image_resources_200_percent.pak
content_resources_200_percent.pak
content_shell.pak
d3dcompiler_47.dll
electron.exe
ffmpeg.dll
icudtl.dat
libEGL.dll
libGLESv2.dll
locales/
natives_blob.bin
node.dll
resources/
snapshot_blob.bin
ui_resources_200_percent.pak
version
views_resources_200_percent.pak
xinput1_3.dll

Inject your custom code

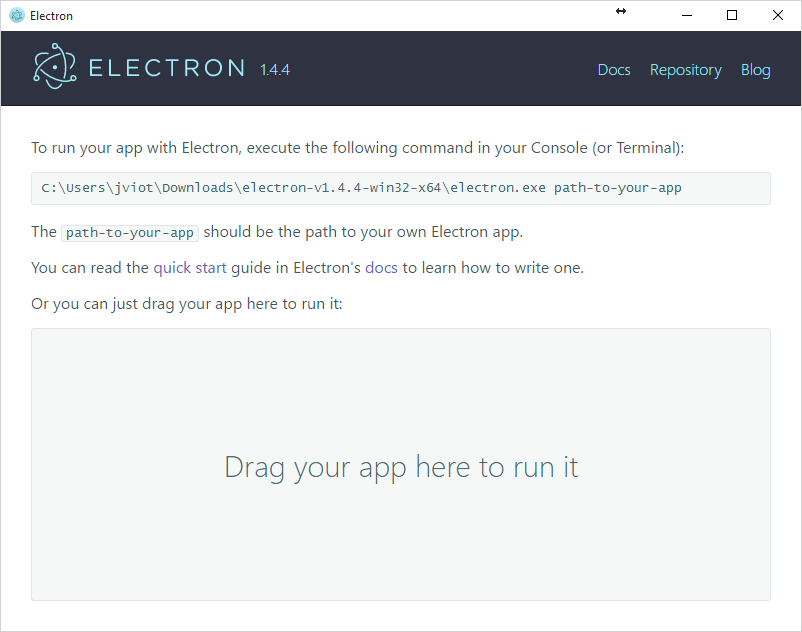

If you execute electron.exe before making any modifications, you’ll get the default Electron application, which lives at resources/default_app.asar:

$ ls -1 resources
default_app.asar
electron.asar

asar is a tar-like archive format developed by Electron to overcome problems such as the Windows maximum path length limitations.

If you’re curious, you can install the asar command line tool and unpack the default application source code:

$ npm install -g asar
$ asar extract default_app.asar default_app
$ ls -1 default_app
default_app.js
index.html
main.js
package.json

Electron defines its default search path for application code in lib/browser/init.js:

const searchPaths = ['app', 'app.asar', 'default_app.asar']
for (packagePath of searchPaths) {
    try {
        packagePath = path.join(process.resourcesPath, packagePath)
        packageJson = require(path.join(packagePath, 'package.json'))
        break
    } catch (error) {
        continue
    }
}

This means that Electron will attempt to first open any code located at resources/app. If it can’t find any code there, it will try resources/app.asar, otherwise will fallback to resources/default_app.asar.

In order to include our custom application code in the Electron package, lets create a directory at resources/app and copy every JavaScript/HTML/CSS file we need into that folder. Then, we can run asar pack app app.asar --unpack "{*.dll,*.node}" to package it up as an asar, and delete the original unpackaged app directory.

We can proceed to delete resources/default_app.asar since we don’t want to include it in our final package.

Brand the Electron package

We’ll do a series of changes to the Electron directory to include our application information and other related assets.

• Rename electron.exe to <your application>.exe
• Replace the contents of LICENSE with your license
• Replace the contents of version with your application’s current version

Every exe file contains read-only information embedded inside that includes the copyright, the product name, the icon, etc. You can see this information by right-clicking on an exe file (a symbolic link to it won’t work) and opening the “Details” pane.

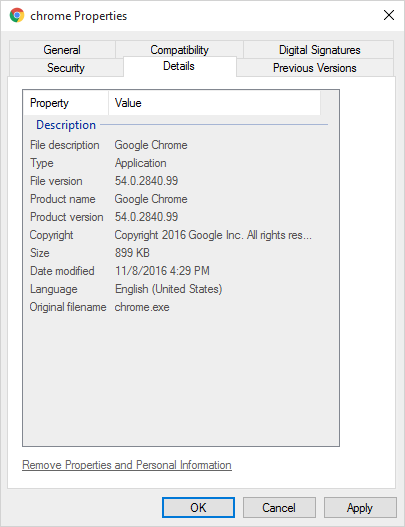

This is what Google Chrome’s executable contains:

The Electron team built a handy tool called rcedit to edit this embedded information. You can download the v0.7.0 binary here, and put it somewhere accessible in your %PATH%.

I’ll assume you renamed electron.exe to MyApp.exe.

Edit the “File description:”

$ rcedit.exe MyApp.exe --set-version-string "FileDescription" "My app description"

Edit the “Internal name:”

$ rcedit.exe MyApp.exe --set-version-string "InternalName" "My app internal name"

Edit the “Original file name:”

$ rcedit.exe MyApp.exe --set-version-string "OriginalFilename" "MyApp.exe"

Edit the “Product name:”

$ rcedit.exe MyApp.exe --set-version-string "ProductName" "My product name"

Edit the “Company name:”

$ rcedit.exe MyApp.exe --set-version-string "CompanyName" "My company name"

Edit the “Legal Copyright:”

$ rcedit.exe MyApp.exe --set-version-string "LegalCopyright" "My copyright"

Edit the “File version:”

$ rcedit.exe MyApp.exe --set-file-version "My app version"

Edit the “Product version:”

$ rcedit.exe MyApp.exe --set-product-version "My app version"

And finally, we’ll set the icon:

$ rcedit.exe MyApp.exe --set-icon path\to\icon.ico

Release your application to the world!

You can now release the package to the world, although you’ll probably want to create an installer for it (using something like NSIS), but that’s a subject for another post.
